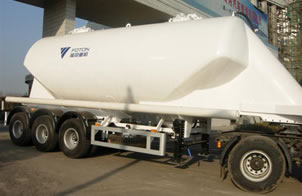

Bulk Cement Tanker Semi Trailer

Description of Bulk Cement Tanker Semi Trailer:
This bulk cement tanker semi trailer, also called cement bulker, is a kind of semi trailer mainly used to carry powder materials, such as cement, coal ashes, limestone powder, talcum powder, and more. And the transportation medium can be dry powder, granules, and wet powder.

This semi trailer can be used to improve transportation efficiency as well as to reduce transportation costs, thus reducing your product costs and achieving mechanization in loading, transporting, unloading, and storing.

The main components are chassis (including the towing chassis), tank assembly, power takeoff driving system, air source system, and air path and its control system.

This bulk cement tanker trailer enjoys high average unloading speed, and low residual ratio. The unloading speed is more than 1.2T/min, and its residual ratio is less than 0.3%.

The cement bulker should adopt RORO, and bulk goods.
We can provide triaxial and biaxial bulk cement tanker semi trailers for you to choose.

Operation of Bulk Cement Tanker Semi Trailer:
1. Before you driving the cement bulker, please turn the hand accelerator on first, and ensure that the electromagnetic pneumatic control valve or the pneumatic hand control valve is closed.
2. If there is some pressure inside the tank, the manhole is not allowed to be opened when you are to load goods.
3. The pressure of the safety valve can be more than its rated pressure of 196Kpa.
4. The check valve should be examined once a year, and in its second usage year, its valve core should be replaced, or examined and then polished.
5. If there are water or other liquid impurities inside the tank, users should first dry the tank wall and pneumatic components before using the tank.
6. It is necessary to regularly examine the connection of manhole hinge pedestals and tank. If there is anything wrong, please repair it immediately.

Parameters of Bulk Cement Tanker Semi Trailer:
Tanker
Model: Self-bearing mild-steel cylindrically shaped tank with low centre of gravity and 2 bottom discharge cones (hoppers)
Test pressure: 3 bar
Max. working pressure: 2 bar
Working temperature: -20° to 50°C
Thickness: 6 mm

Tank top accessories
2 manholes DN500 with hinged and swivel quick release lids Walkway with handrail and ladder

Discharge equipment
2 outlet cones of 850mm diameter
An aeration pad is mounted in each discharge hopper
all airlines have no-return valves

Discharge possibilities
Central discharge opening on the 2 hoppers diameter 200mm, closed with a blank cover
Material outlets of 100mm diameter with manual valves, lead out together to discharge pipe

Running gear
FUWA axles 3x13T double wheels
12 steel rims and tyres 11.00R20
2" kingpin JOST
2-geared mechanical operated landing legs FUWA

Braking system
Double line air brakes
Mechanical parking brake

Electrical system
Complete electrical system with 7-socket DIN and SAE connection

Painting
All steel parts are steel blasted before painting
Tanker and chassis is painted according to customer's wish

Accessories
Side protection
2 PVC hose carriers
mudguards
Tool box

Compressor
Exhaust rate: 8.0m3/min
Exhaust pressure: 0.2MPa
Power: ≤26.5kw
Rotation rate: 1100r/min
Suction temperature: ≤40℃
Exhaust temperature: ≤170℃
Continuous running time: ≤60min
Weight: 190kg
Overall dimension: 1097mm×660mm×330mm

Bulk Cement Tanker Trailer for Sale

As a professional manufacturer of bulk cement tanker semi trailer (cement bulker) in China, LANTYPC Purpose Vehicle can also provide many special vehicles for you, such as low bed trailer, container flatbed trailer, container skeletal trailer, tipping trailer, van trailer, side wall trailer,fuel tanker trailer, bitumen tanker trailer, combination vacuum jetter truck, vacuum suction truck, water jetting truck, and more. All of our products have obtained ISO9001 and CCC certification. With reliable quality and competitive price, our products have been quite popular among clients in many countries like Saudi Arabia, UAE(United Arab Emirates), Tanzania, Kenya, Australia, New Zealand, Belgium, Bosnia and Herzegovina, Brazil, Cuba, Morocco, Algeria and such. If you need bulk cement tanker semi trailer, please don't hesitate to contact us.
